Server Tests

This section covers recommended practices for writing Artemis server tests.

You can execute server tests with the following commands:

• Execute tests with a coverage report: ./gradlew test jacocoTestReport -x webapp
• Execute tests without a coverage report: ./gradlew test -x webapp
• Execute tests with coverage report and verification: ./gradlew test jacocoTestReport -x webapp jacocoTestCoverageVerification
• Run a single test: ./gradlew test --tests ExamIntegrationTest -x webapp or ./gradlew test --tests ExamIntegrationTest.testGetExamScore -x webapp
• Verify code coverage (after tests): ./gradlew jacocoTestCoverageVerification -x webapp

The code coverage thresholds are defined in jacoco.gradle.

To run the server tests against a real database in a Docker test container, use:

• Execute tests with Postgres container: SPRING_PROFILES_INCLUDE=postgres ./gradlew test -x webapp
• Execute tests with MySQL container: SPRING_PROFILES_INCLUDE=mysql ./gradlew test -x webapp

General testing tips

Use appropriate and descriptive names for test cases so developers can easily understand what you test without looking deeper into it. Instead of naming your variables int a, double b, String c, you should use meaningful names that elucidate their purpose. To increase readability, prefix variable names with actual and expected.

We want to follow the naming convention should<ExpectedBehavior>When<StateUnderTest>. For example, if you want to test that an unknown user should not be able to borrow a Book, BookIntegrationTest.shouldReturnForbiddenWhenUserUnknown() would be an appropriate name for the test case. Using a nested class can improve the readability of the test names as well as the structure of the test class. When comparing two books in the test, use meaningful names such as actualBook and expectedBook.

@Nested
class BorrowBook {

    @Test
    void shouldReturnForbiddenWhenUserUnknown() {
        [...]
        assertThat(actualBook).isEqualTo(expectedBook);
    }

    [...]
}

Try to follow the best practices for Java testing:

• Write small and specific tests by using helper functions with relevant parameters.
• Assert what's relevant and avoid writing a single test covering all edge cases.
• Write dumb tests by avoiding the reuse of production code and focusing on comparing output values with hard-coded values.
• Invest in a testable implementation by avoiding static access, using constructor injection, and separating business logic from asynchronous execution.
• Instead of using random, use fixed test data to make error messages better understandable.
• Make use of JUnit 5 features such as parameterized tests and nested test classes.
• Follow best practices related to spring testing.

For a more detailed overview, check out modern best testing practices.

Assert using the most specific overload method

When asserting in server tests, use assertThat from the AssertJ library. Another assertion statement, such as isEqualTo(), must follow the call. Using specific assertion statements rather than always expecting boolean values is the best practice.

For example, instead of

assertThat(submissions.size()).isEqualTo(1);
assertThat(submissionInDb.isPresent()).isTrue();
assertThat(submissionInDb.get().getFilePath().contains("file.png")).isTrue();

use the built-in assertions directly:

assertThat(submissions).hasSize(1);
assertThat(submissionInDb).isPresent();
assertThat(submissionInDb.get().getFilePath()).contains("file.png");

These assertions provide better error messages when they fail and improve the code readability. However, not all methods are suitable for this type of assertion. If the isTrue assertion is unavoidable, specify a custom error message using the as keyword:

assertThat(submission.isSubmittedInTime()).as("submission should be in time").isTrue();

For more information, please read the AssertJ documentation, especially the section about avoiding incorrect usage.

ArchUnit

Use the ArchUnit library to prevent the unintentional inclusion of unnecessary packages. We use the library to enforce consistency in the code base. Here is a simple ArchUnit test using an ArchRule to forbid JUnit assertions (in favor of AssertJ ones).

@Test
void testNoJunitJupiterAssertions() {
    ArchRule noJunitJupiterAssertions = noClasses().should().dependOnClassesThat().haveNameMatching("org.junit.jupiter.api.Assertions");

    noJunitJupiterAssertions.check(testClasses);
}

We first define the ArchRule prohibiting the JUnit assertion package and then enforce it in test classes. Add new general ArchUnit test cases into the existing ArchitectureTest class or create a new class extending AbstractArchitectureTest for more specific tests.

Counting database query calls within tests

It's possible to write tests checking how many database accesses an operation performs. These tests ensure that code changes don't inadvertently decrease performance and remind developers if they do, which is especially important for commonly used functionality. However, we should carefully consider before adding such assertions as the test becomes more tedious to maintain.

The test below tracks how many database accesses a REST call performs. The custom assert assertThatDb uses the HibernateQueryInterceptor to count the number of queries. The assertion checks the number of database accesses and returns the original result of the REST call, which you can continue to use throughout the test.

class TestClass {

    @Test
    @WithMockUser(username = "instructor1", roles = "INSTRUCTOR")
    void testQueryCount() throws Exception {
        Course course = assertThatDb(() -> request.get("/api/core/courses/" + courses.get(0).getId() + "/for-dashboard", HttpStatus.OK, Course.class)).hasBeenCalledTimes(3);
        assertThat(course).isNotNull();
    }
}

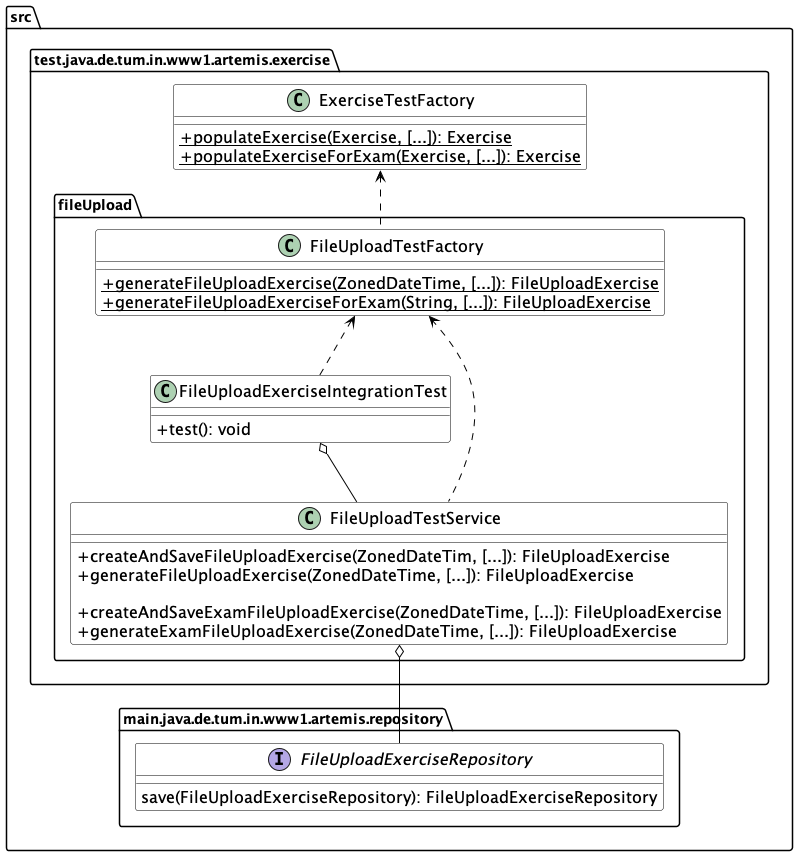

UtilServices and factories

When setting up data in tests, use helper functions from corresponding UtilService and Factory classes. We use the factory method pattern to structure test cases. In general, UtilServices manage the communication with the database, and Factories are responsible for object creation and initialization. If you cannot find the correct helper function, add a new one to the most fitting UtilService or Factory and enhance it with Javadoc.

UtilServices and factories

⚠️

Make sure to always use the ids returned by the database and to not assume the existence or non-existence of specific values.

Test performance tips

Fast tests provide quick feedback, enabling developers to address issues and speed up the development process. We execute test groups (JenkinsLocalVC, LocalCILocalVC, LocalVCSaml, Unit Tests, Independent Tests) in parallel, trying to balance them out. When creating a new integration test, keep the test group balance in mind and consider adding the class to any other group, especially LocalCILocalVC, LocalVCSaml, or Independent Tests. Additionally, consider the spring profiles the new test cases need when deciding on the test group.

Follow these tips to write performant tests:

• Avoid database access as much as possible. It is very time-consuming, especially when running tests against MySQL or Postgres.
• Avoid unnecessary mocked requests by directly setting up the data and saving it in the database.
• Use the Awaitility library for asserting async code.
• Limit object creation in tests and the test setup.

Spring Boot Server Starts and Context Configuration

Spring Boot caches test application contexts and reuses them when configurations match. When certain annotations differ between test classes, Spring creates separate contexts, causing additional server starts. We enforce a maximum of 8 server starts during test execution via the GitHub Action in supporting_scripts/extract_number_of_server_starts.sh.

Annotations That Can Cause Context Pollution

The following annotations can cause Spring to create new application contexts if used outside base classes:

Annotation	Impact
@MockitoSpyBean	Creates new context when spy configuration differs
@MockitoBean	Creates new context when mock configuration differs
@TestPropertySource	Creates new context when properties differ
@ActiveProfiles	Creates new context when active profiles differ
@DirtiesContext	Marks context as dirty, forcing recreation for subsequent tests
@ContextConfiguration	Creates new context when configuration differs
@SpringBootTest	Creates new context when boot configuration differs
@Import	Creates new context when imported configurations differ
@Profile	No-op on test classes (they're not Spring beans), but checked for consistency
@Conditional*	No-op on test classes (they're not Spring beans), but checked for consistency

Allowed Base Test Classes

Only the following abstract base test classes are permitted to define context-affecting annotations:

Base Test Class	Hazelcast Instance	Purpose
AbstractSpringIntegrationIndependentTest	Artemis_independent	Independent tests without CI/CD integration
AbstractSpringIntegrationJenkinsLocalVCTest	Artemis_jenkins	Jenkins + LocalVC integration
AbstractSpringIntegrationJenkinsLocalVCTemplateTest	Artemis_jenkins_template	Jenkins template tests
AbstractSpringIntegrationJenkinsLocalVCBatchTest	Artemis_jenkins_batch	Jenkins batch tests
AbstractSpringIntegrationLocalCILocalVCTest	Artemis_localci	Local CI + LocalVC integration
AbstractSpringIntegrationLocalVCSamlTest	Artemis_localvc_saml	LocalVC with SAML authentication
AbstractArtemisBuildAgentTest	Artemis_build_agent	Build agent tests

Exception: RedissonDistributedDataTest is allowed to have its own @TestPropertySource for Redis-specific configuration, as it requires a separate context.

Rules for Test Classes

1. Never add @MockitoSpyBean or @MockitoBean to concrete test classes. Add them to the appropriate base class instead.
2. Never add @TestPropertySource to concrete test classes. Add properties to the appropriate base class.
3. Never add @ActiveProfiles to concrete test classes. The profiles are defined in base classes.
4. Never use @DirtiesContext. Clean up test state manually instead of dirtying the context.
5. Never add @ContextConfiguration, @SpringBootTest, or @Import to concrete test classes. These are defined in base classes.
6. Never use @Profile or @Conditional* on test classes. These are meant for Spring beans, not test classes.
7. If you need a new spy bean or property, add it to the appropriate base class and update the resetSpyBeans() method.
8. An architecture test (SpringContextConfigurationArchitectureTest) enforces these rules automatically.

Why This Matters

Each additional Spring context causes:

• Extra server startup time (~30-60 seconds per context)
• Increased memory usage
• Longer CI pipeline execution

Avoid using @MockitoBean

Do not use the @MockitoSpyBean or @MockitoBean annotation unless absolutely necessary or possibly in an abstract Superclass. Here you can see why in more detail. Whenever @MockitoBean appears in a class, the application context cache gets marked as dirty, meaning the runner will clean the cache after finishing the test class. The application context is restarted, which leads to an additional server start with runtime overhead. We want to keep the number of server starts minimal.

To avoid new MockitoSpyBeans, we now use static mocks. We no longer mock the uppermost method but only throw the exception at the place where it could actually happen. At the end of the test, you need to close the mock again.

Parallel test execution

We use the JUnit 5 feature to execute tests in parallel.

The following line in the junit-platform.properties file enables parallel test execution with JUnit 5. Setting the property to false disables parallel test execution.

junit.jupiter.execution.parallel.enabled = true

To execute a test class and its inheriting classes in parallel, we annotate it with @Execution(ExecutionMode.CONCURRENT). Since we need to isolate resources such as databases and application contexts, we use the @ResourceLock annotation. By annotating abstract base classes with it, we group tests into parallel running groups while preserving the sequential execution of tests within each group.

@SpringBootTest
@AutoConfigureMockMvc
@ExtendWith(SpringExtension.class)
@Execution(ExecutionMode.CONCURRENT)
@ResourceLock("AbstractSpringIntegrationIndependentTest")
@AutoConfigureEmbeddedDatabase
@ActiveProfiles({ SPRING_PROFILE_TEST, PROFILE_ARTEMIS, PROFILE_SCHEDULING })
@TestPropertySource(properties = { "artemis.user-management.use-external=false" })
public abstract class AbstractSpringIntegrationIndependentTest extends AbstractArtemisIntegrationTest { ... }

Note that parallel test execution is only safe if the tests are independent and will lead to flaky tests otherwise.

⚠️

Avoid using @Isolated whenever possible, as it worsens the test runtime. Try to refactor tests so that the shared resources become exclusive and only use @Isolated if refactoring is not possible.
